Mamak Punya Liga (MPL)

Overview

Engineered and simulated a full-scale enterprise network infrastructure for a large-scale E-Sports tournament venue in Cisco Packet Tracer, covering hierarchical network design, multi-zone VLAN segmentation, dynamic routing, and centralized service management across three geographically separated zones.

Key Features

• ◆16-zone VLSM IP allocation plan on base 10.30.0.0/16, accommodating up to 900 hosts per VLAN without waste

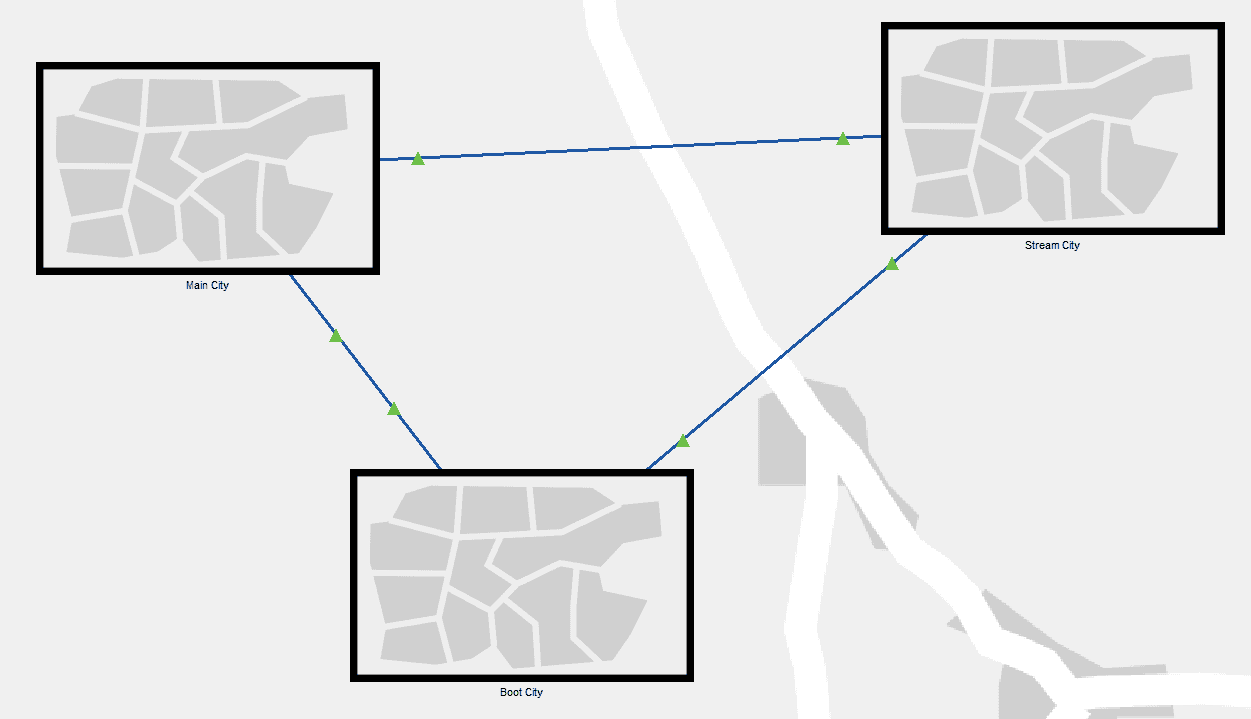

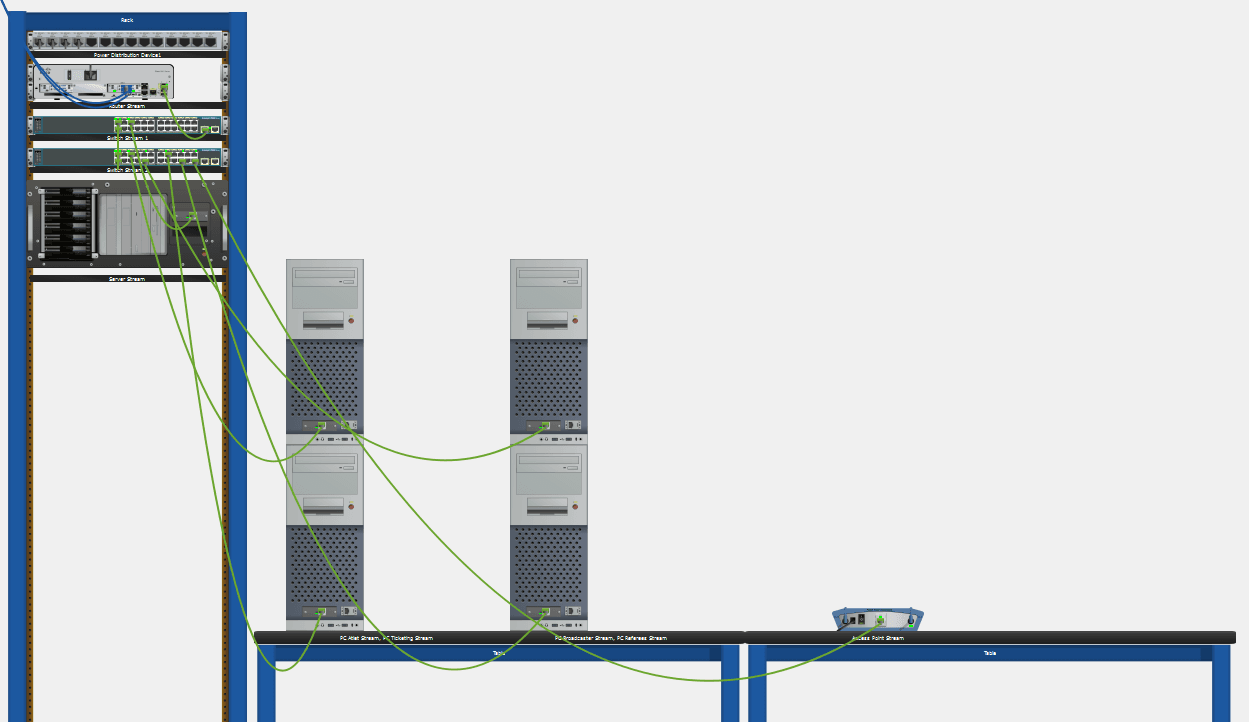

• ◆3-tier hierarchical architecture (Core, Distribution, Access) across Main Stage Arena, Streaming Studio, and Bootcamp Area
• ◆Router-on-a-Stick with IEEE 802.1Q encapsulation and DHCP Relay for centralized dynamic IP distribution
• ◆RIPv2 dynamic routing with no auto-summary across Full Mesh WAN connecting Cisco 1941 routers
• ◆EtherChannel LACP link bonding and Rapid-PVST for loop prevention and fast convergence
• ◆15 DHCP pools, DNS A-Record server, HTTP/HTTPS Web Server, and WPA2-PSK wireless Access Points per zone
